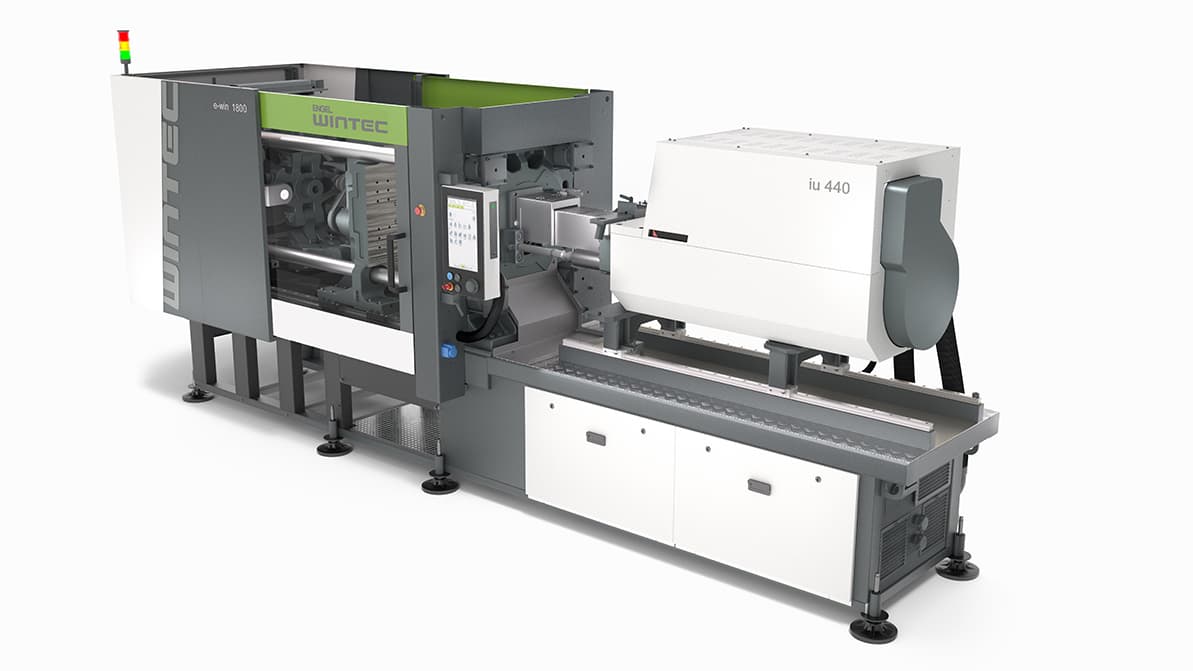

WINTEC e-win series — All-electric
e-win
All-electric precision — servo drives on every axis for high-speed, high-accuracy moulding with a small footprint and cleanroom manners.
1,000 – 5,000 kN
All-electric
Overview
All-electric
The e-win puts a servo motor on every axis — clamping, injection, plasticising and ejection — with ball-screw actuation and linear guides throughout. The result is leading efficiency and maximised running accuracy: full closed-loop control holds shot weight steady to fractions of a gram, while the oil-free drivetrain makes it naturally suited to cleanroom and medical work. Flexible and modular, it covers everything from 16-second connector cycles to cryogenic storage tubes.
Key data
- Clamping force
- 1,000 – 5,000 kN
- Drive
- All-electric servo, every axis
- Clamp design
- High-stiffness toggle, contactless tie-bars
- Injection
- Double ball-screw, linear guided
- Control
- C3 · 15″ Full-HD · e-move
- Smart functions
- iQ weight / clamp / hold control
- Validation
- 3M cycles @ max force
- Cleanroom
- Oil-free, cleanroom compatible
Engineering
What sets the e-win apart
01
Servo drive on every axis
Powerful all-electric servo components with ball-screw actuation allow parallel movement of every axis — speed without compromise on control.
02
Precision, closed loop
Full closed-loop monitoring with high-precision sensors keeps injection, clamping and ejection exactly on profile, cycle after cycle.
03
iQ smart functions
iQ weight control, iQ clamp control and iQ hold control continuously correct the process before scrap happens.
04
Balanced nozzle force
A double ball-screw injection unit distributes nozzle contact force evenly for clean gates and consistent filling.
05
Cleanroom ready
No hydraulic oil, low emissions and a compact frame make the e-win a natural fit for medical and electronics cleanrooms.
06
Low energy, low friction
Energy recovered on deceleration, low-friction components and optional infrared heating bands cut running costs further.
Applications
Where the e-win earns its keep
- Connectors and precision electronics
- Medical technology — cryogenic tubes, dispensing actuators
- Thin-wall packaging and closures
- High-cavitation precision parts
- Technical mouldings needing micron repeatability
